Description

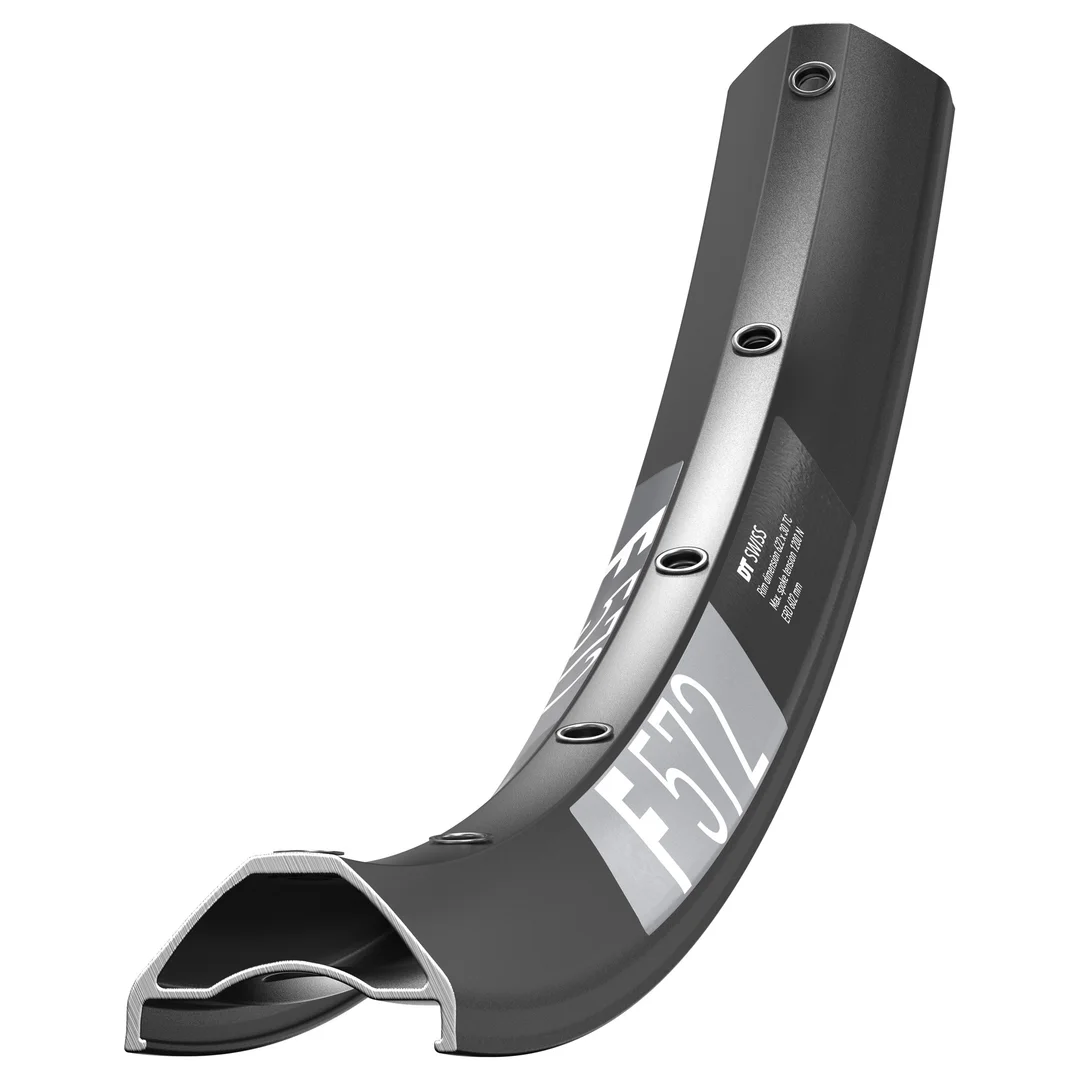

During development, particular attention was paid to stability, which means that the angular profile can withstand even heavy impacts and easily survive a nasty crash. Nevertheless, the weight is within an acceptable range. In addition, the enormous inner width gives the tire perfect support, which prevents it from buckling in fast bends and ensures greater riding stability. The rim ends are joined together using the sleeve-joint method. In this process, a molded part is pressed evenly into both ends of the rim profile and the rim is joined together. The holes for the spokes have been reinforced with eyelets to prevent them from tearing out. The high-quality workmanship typical of DT Swiss guarantees the rim a long service life. In addition, the shot-peened surface largely prevents stone chips, so that it appears as good as new even after many descents.
Area of application: Freeride, Downhill
Material: Aluminum
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
ETRTO: 622×30 (29″)
ERD: 602 mm
Inner width: 30 mm
Outer width: 35 mm
Rim height: 20 mm
Offset: 0 mm (symmetrical)
Number of holes: 28
Tubeless compatible: yes
ASTM classification: 5
Recommended tire width: 47 mm – 89 mm
Max tire pressure: Tubeless: 1.5 bar (89 mm) – 3.5 bar (47 mm) | with inner tube: 2.0 bar (89 mm) – 4.7 bar (47 mm)
Max system weight: 140 kg (rider, bike, clothing and possibly luggage)
Max spoke tension: 1200 N
Features: eyeleted
Valve hole: 6 mm (SV, Presta)
Finish: matt
Color: black
Weight: ~660g
